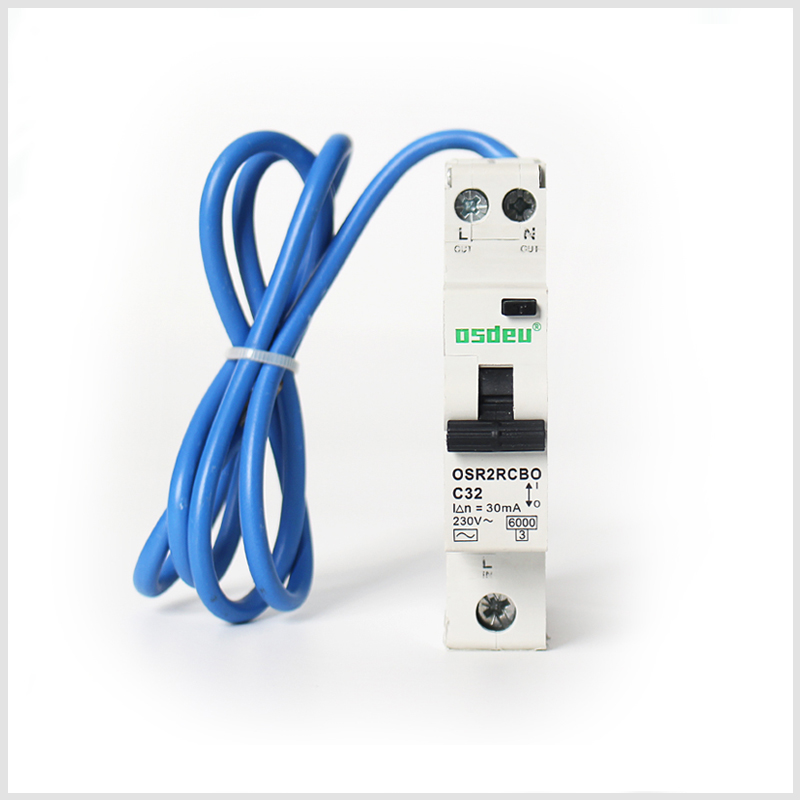

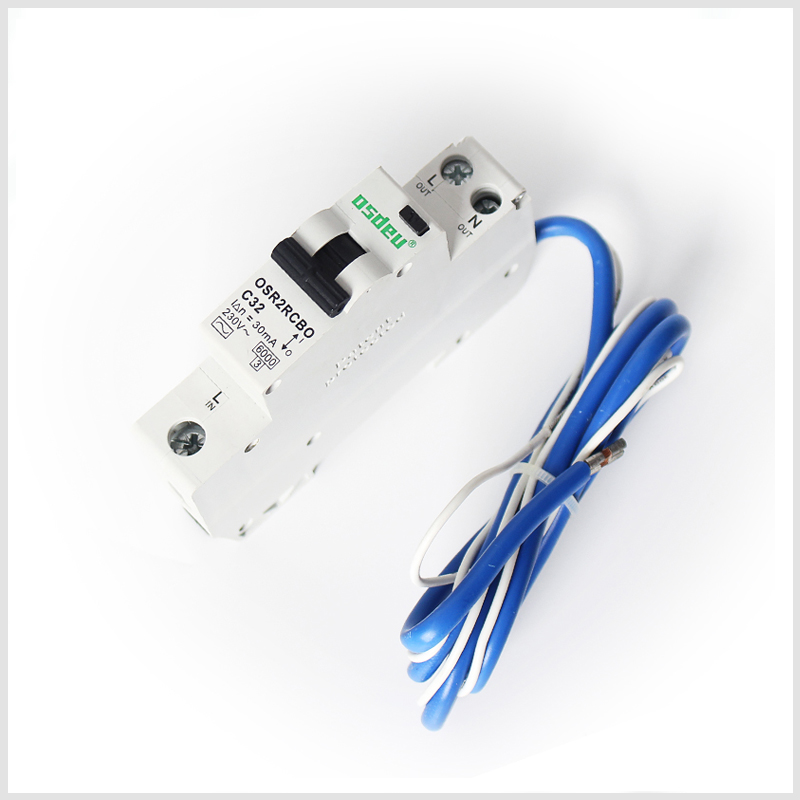

18mm Single Module RCBO, 6KA, 1P+N 10mA, Dual-feed capable circuit breaker

OSR2-40 RCBO - Smart Circuit Protection by ZHISHUN

Premium Safety Features

Dual Protection: Combines RCD (earth leakage) + MCB (overload/short-circuit)
Wide Current Range: 6A-40A (6,10,16,20,25,32,40A)
Type A/AC Detection: Catches AC + pulsating DC faults (ideal for EV chargers)
30mA/100mA/300mA Sensitivity: Personal shock & fire protection
6kA Breaking Capacity: Reliable fault interruption

Technical Highlights

Standards: IEC61009-1, CE, CB certified
Voltage: 230/240V AC

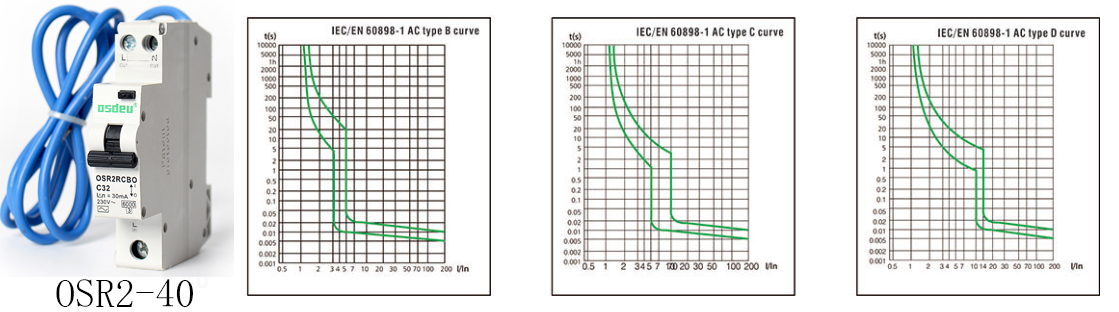

Tripping Curves: B (3-5x In) / C (5-10x In)
Operating Temp: -25°C to +40°C
Compact 1P Design: Space-saving installation
Bottom Wiring: Easy connection

Why Choose OSR2-40?
✔ All-in-one safety - No need for separate RCD+MCB
✔ EV charger ready - Type A detects DC leakage
✔ Global certifications - Meets international standards

Best for: Homes • EV Stations • Solar Systems • Commercial Buildings

Send Inquiry Live Chat

製品概要
Why Choose OSR2-40 RCBO
Packing & Delivery
FAQs

Porduct Overview

OSR2-40 1P+N RCBO – Advanced Circuit Protection Solution

Core Protection Features:

Single-module design combining RCD + MCB protection
Comprehensive coverage against:
- Short-circuit currents
- Overload conditions
- Earth fault currents (10/30/100/300mA sensitivity)
- Indirect/direct contact hazards
Built-in supply neutral wire for enhanced safety

Technical Advantages:

Superior Fault Protection – Neutral wire ensures reliable earth fault and overcurrent detection
Critical Environment Ready – Ideal for medical facilities and sensitive electronic installations
Regulation Compliant – Meets strict industry requirements for functional earth wiring
Installation Efficiency – Simplified wiring saves valuable installation time
Space-Saving Design – Compact 1P+N configuration optimizes panel space

Optimal Applications:

Healthcare facilities and medical equipment
Laboratory and research environments
Data centers and server rooms
Industrial control systems
Sensitive electronic installations

主な利点:
✔ Dual-function protection in one device
✔ Neutral wire enhances system reliability
✔ Meets stringent safety regulations
✔ Quick and easy installation process
✔ Compact footprint saves space

OSR2-40 RCBO Technical Specifications

Category	Parameter	Specification
Certification	Standard	IEC/EN61009-1
Protection Types	Ground Fault	Electronic trip
	Overcurrent/Short Circuit	Thermo-magnetic trip
	Over-voltage	Selectable
Electrical	Leakage Protection Type	AC, A
	Poles	1P+N (1 module)
	Neutral Line	Disconnected
	Rated Current (In)	6,10,16,20,25,32,40A
	Sensitivity (IΔn)	10,30,100,300mA
	Trip Time (IΔn)	≤0.1s
	Rated Voltage (Ue)	230/240V~
	Frequency	50/60Hz
	Breaking Capacity	6,000A
	Impulse Withstand Voltage	4,000V (1.2/50μs)
	Dielectric Test Voltage	2kV (1 min)
Tripping	Thermal Release	(1.13-1.45) x In
	Magnetic Release	B:3-5x In, C:5-10x In
Mechanical	Electrical Life	4,000 cycles
	Mechanical Life	10,000 cycles
	Contact Indicator	Yes
	Protection Degree	IP20
Environmental	Operating Temperature	-25℃ to +40℃
	Humidity	Max 95%
Installation	Terminal Type	Cable/Pin-type busbar
	Max Cable Size	L(in):25mm², N/L(out):16mm²
	Tightening Torque	L(in):2.5N·m, N/L(out):2N·m
	Mounting	35mm DIN rail
	Connection	Bottom only

Key Features of This Table:

Dimensions

1. All-in-One Protection

Combines RCD (earth leakage) + MCB (overcurrent/short-circuit) protection in a single compact module
Covers: short circuits, overloads, earth faults, and direct/indirect contact risks

2. Enhanced Safety with Neutral Wire

Built-in neutral disconnection ensures reliable protection against earth faults and overcurrents
Critical for medical facilities, labs, and sensitive electronics where safety is paramount

3. Flexible Sensitivity Options

10mA/30mA/100mA/300mA versions available:
- 30mA: Personal shock protection
- 100mA/300mA: Fire prevention

4. Compliant & Reliable

Meets IEC/EN61009-1 standards
Certified for use in regulated environments (healthcare, industrial, etc.)

5. Easy Installation

1P+N design saves space in distribution boards
Bottom wiring for faster, cleaner installations

Best For:

Hospitals & Medical Equipment – Ensures uninterrupted power for critical devices
Data Centers – Protects servers from electrical faults
Industrial Controls – Handles motor inrush currents (C-curve)
Labs & Precision Electronics – Prevents leakage-induced interference

主な利点:

✔ Space-saving – No need for separate RCD+MCB
✔ Safety-first – Neutral wire adds extra protection layer
✔ Versatile – Multiple sensitivity options for different needs
✔ Quick setup – Simplified wiring reduces installation time
